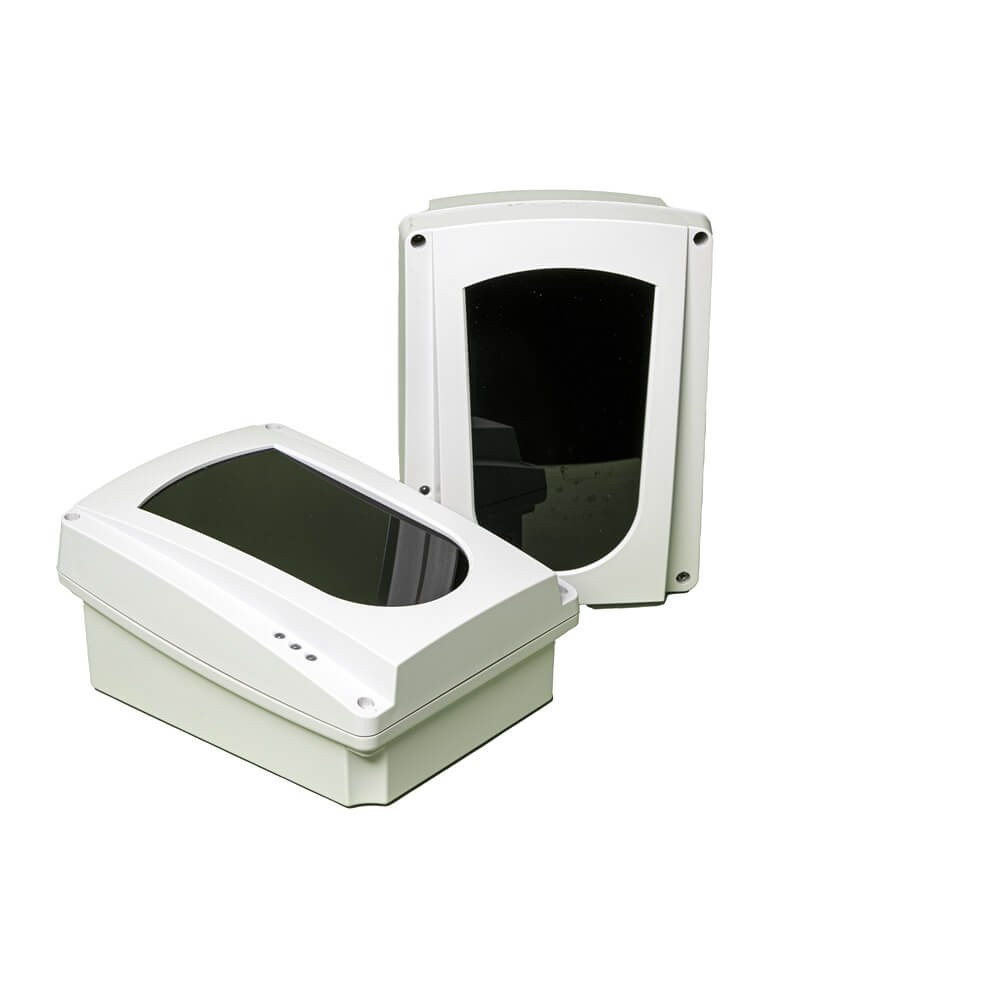

BF100A Linear smoke barrier with infrared tx/rx

“Linear smoke barrier with infrared composed of a transmitter and a receiver, range 5-100m with RS-485 connection; relay output for fault and alarm”

- +

Standard

EN 54-12: 2002

Size

96 x 159 x 211mm

Coverage radius

7,50m

Coverage area

1500 m2

Infrared radius

5 at 100m

Power supply

11,5-27,8Vcc

Tx consumption

Standby with 12V module = 23mA
Standby with 24V module = 23.6mA

Rx consumption

Standby with 12V module = 49mA
Alarm with 12V module = 69mA
Standby with 24V module = 53mA
Alarm with 24V module = 78mA

Relay output

500mA at 12V

Temperature

+5°C / +40°C

Degree of protection

IP64

Or Register

BF100A Manuale (ITA)
